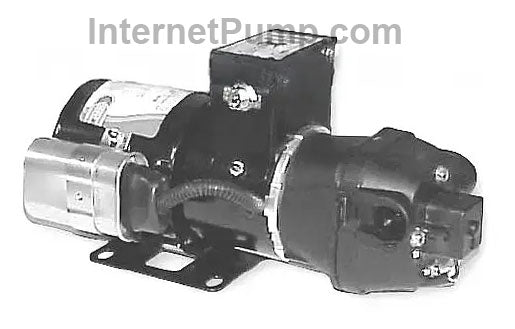

Flojet 04300-529A Industrial Diaphragm Pump
Flojet 04300-529A Industrial Diaphragm Pump
Flojet 04300-529A Industrial Diaphragm Pump, 115V, Viton Valves, Santoprene Diaphragm . CSA Approved
Regular price
$ 786.50 USD
Regular price
Sale price
$ 786.50 USD
Unit price
/
per
Shipping calculated at checkout.
Out of Stock.
Couldn't load pickup availability
FEATURES :
Pump Body: Glass Filled Polypropylene, Four Piston, Diaphragm Pump
Port Size: 1/2" (13 mm) Hose Barb, Viton O-ring 1/2" Male Qest, EPDM O-ring
Flow: Flow to 3 GPM/12 LPM
Pressure: Continuous 25 psi (1.7 Bar) at 75°F (24°C) Ambient Duty Rating.Cut-In 25 PSI, Cut-Out 40 PSI.
Elastomers: Diaphragm: SantopreneValves: Viton
Motor: AC Capacitor Start Induction Motor Fan Cooled, Sealed Ball Bearing Thermally Protected, 115VAC, 60Hz, 1phase 1.8 Amp, CSA, UL listed. Conforms to Electromagnetic Compatibility 89/336/EEC and Machinery Directive 89/392/EEC, EN50081-1.
APPLICATIONS:
This pump provides excellent service where 115VAC 60hz single-phase power is required for operation. The AC capacitor start induction motor dramatically extends motor service life in applications where permanent magnet DC motors would require regular maintenance to replace worn motor brushes. This pump is the clear choice for continuous duty bulk transfer and recirculation applications. Recommended for use with mild acids and bases compatible with the materials of construction. Typical applications include chemical feed, chemical transfer, coolant re-circulation, condensate removal, tank agitation, thermal mixing, filling, flushing, and washdown applications. Pump will self-prime and can be mounted up to 9 feet above the liquid supply level. Pump can run dry without damage. Built-in pressure switch automatically turns pump off when discharge valve is closed. Snap-in ports for easy installation and maintenance. NOTE: Viton equipped models are not suitable for potable water applications.
