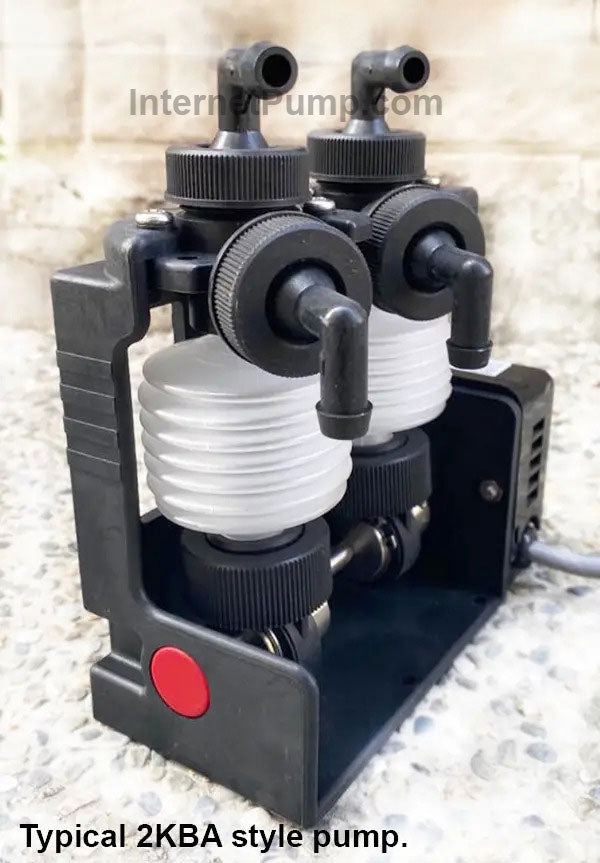

Iwaki Pump # 2KBA-3ZBU2 - Bellows Pump
Iwaki Pump # 2KBA-3ZBU2 - Bellows Pump
Iwaki 2KBA-3ZBU2 Bellows Pump, Duplex, Polypropylene, up to 141 ml/minute Per Bellows at 60Hz, up to 0.02MPa, 2.9 PSI, 115 Volt. Manufacturer: Genuine Iwaki, new.8413500090.
Regular price
$ 339.77 USD
Regular price
Sale price
$ 339.77 USD
Unit price
/
per
Shipping calculated at checkout.
Out of Stock.
Couldn't load pickup availability
FEATURES :
Bellows: Blow-Molded Polypropylene, Duplex.
Port Size: 9mm, 0.35 Inches.
Flow: Up to 119 ml/minute Per Bellows at 50Hz.Up to 141 ml/minute Per Bellows at 60Hz.
Pressure: Up to 0.02MPa, 2.9 PSI.
Strokes: 10 Strokes Per Minute at 50Hz.12 Strokes Per Minute at 60Hz.
Backflow Protection: Sure-Seating Elastomeric Poppet Valves.
Motor: Continuous Duty, Gear-Motor Drive, 3.5 Watts, 50/60Hz.
APPLICATIONS:
BELLOWS PUMP Bellows pumps are extensively used in the photographic, plating, chemical dosing and electronics industries.Features include:Off-the-shelf availability.Simplex, Duplex and Multiplex configurations.Thermoplastic motor housing.Easy output adjustment.Dependable positive displacement with 1% repeatability through a 10:1 adjustment ratio.
