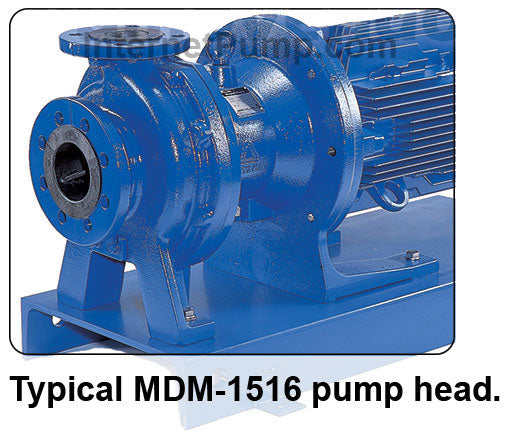

Iwaki Pump # MDM1516EKK03 - MDM-1516EKK03 Mag-Drive Pump End Only
Iwaki Pump # MDM1516EKK03 - MDM-1516EKK03 Mag-Drive Pump End Only
Iwaki MDM1516EKK03 MDM-1516EKK03 Mag-Drive Pump End Only. No Motor. Best Efficiency Capacity: 40 GPM, Best Efficiency Capacity: 110 Feet of Head, 1-1/2" Flanged Inlet x 1" Flanged Outlet, Carbon Fiber Reinforced ETFE Body, Silicon Carbide Bearings. Manufacturer: Genuine Iwaki, new. MDM-1516EKK03
Regular price
$ 5,371.73 USD
Regular price
Sale price
$ 5,371.73 USD
Unit price
/
per
Shipping calculated at checkout.
Out of Stock.
Couldn't load pickup availability
FEATURES :
Pump Body: CFRETFE - Carbon Fiber Reinforced ETFE. (Ethylene Tetrafluoroethylene)
Port Size: 1-1/2" Flanged Inlet and 1" Flanged Outlet.
Flow: Best Efficiency Capacity: 40 GPM at 60Hz. Minimum Flow 5 GPM.
Pressure: Best Efficiency Capacity: 110 Feet of Head.
Impeller: CFRETFE - Carbon Fiber Reinforced ETFE. (Ethylene Tetrafluoroethylene)
Shaft Seal: No Seals On Mag Drive Pumps, PTFE Body Gasket.
Shaft: Silicon Carbide.
Wetted BearingMaterials: Silicon Carbide Impeller to Shaft Bearing.Silicon Carbide Thrust Collars.PTFE Outboard Rear Thrust Collar.
Motor: Requires 3HP Footless 182TC Frame Motor.
APPLICATIONS:
MAGNETIC DRIVE CENTRIFUGAL PUMP A wide ranging line of chemical process pumps designed to solve the most demanding chemical handling applications. Corrosion Resistant Materials To Handle Aggressive Chemicals And High Purity Applications.
View full details
Pump Body: CFRETFE - Carbon Fiber Reinforced ETFE. (Ethylene Tetrafluoroethylene)
Port Size: 1-1/2" Flanged Inlet and 1" Flanged Outlet.
Flow: Best Efficiency Capacity: 40 GPM at 60Hz. Minimum Flow 5 GPM.
Pressure: Best Efficiency Capacity: 110 Feet of Head.
Impeller: CFRETFE - Carbon Fiber Reinforced ETFE. (Ethylene Tetrafluoroethylene)
Shaft Seal: No Seals On Mag Drive Pumps, PTFE Body Gasket.
Shaft: Silicon Carbide.
Wetted BearingMaterials: Silicon Carbide Impeller to Shaft Bearing.Silicon Carbide Thrust Collars.PTFE Outboard Rear Thrust Collar.
Motor: Requires 3HP Footless 182TC Frame Motor.
APPLICATIONS:
MAGNETIC DRIVE CENTRIFUGAL PUMP A wide ranging line of chemical process pumps designed to solve the most demanding chemical handling applications. Corrosion Resistant Materials To Handle Aggressive Chemicals And High Purity Applications.
