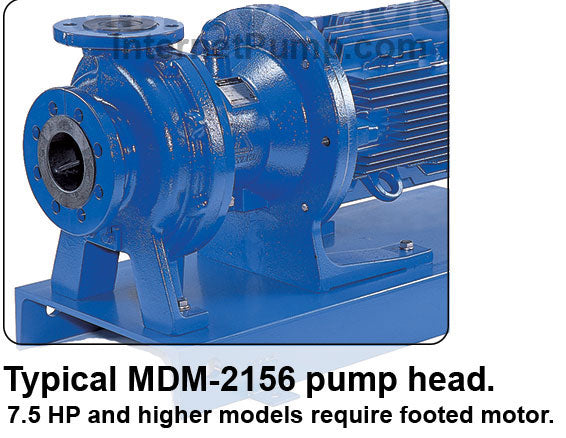

Iwaki Pump # MDM2156ECF10 - MDM-2156ECF10 Mag-Drive Pump End Only
Iwaki Pump # MDM2156ECF10 - MDM-2156ECF10 Mag-Drive Pump End Only
Iwaki MDM2156ECF10 MDM-2156ECF10 Mag-Drive Pump End Only. No Motor. Best Efficiency Capacity: 125 GPM, Best Efficiency Capacity: 114 Feet of Head, 2" Flanged Inlet x 1-1/2" Flanged Outlet, Carbon Fiber Reinforced ETFE Body, High Density Carbon and PTFE Bearings. Manufacturer: Genuine Iwaki, new. MDM-2156ECF10
Regular price
$ 6,595.35 USD
Regular price
Sale price
$ 6,595.35 USD
Unit price
/
per
Shipping calculated at checkout.
Out of Stock.
Couldn't load pickup availability
FEATURES :
Pump Body: CFRETFE - Carbon Fiber Reinforced ETFE. (Ethylene Tetrafluoroethylene)
Port Size: 2" Flanged Inlet and 1-1/2" Flanged Outlet.
Flow: Best Efficiency Capacity: 125 GPM at 60Hz. Minimum Flow 13 GPM.
Pressure: Best Efficiency Capacity: 114 Feet of Head.
Impeller: CFRETFE - Carbon Fiber Reinforced ETFE. (Ethylene Tetrafluoroethylene)
Shaft Seal: No Seals On Mag Drive Pumps, PTFE Body Gasket.
Shaft: Alumina Ceramic.
Wetted BearingMaterials: High Density Carbon Impeller to Shaft Bearing.Alumina Caramic and PTFE Thrust Collars.
Motor: Requires 10HP Footed 215TC Frame Motor.
APPLICATIONS:
MAGNETIC DRIVE CENTRIFUGAL PUMP Dry Run Rated Materials in the ECF Pump Versions. A wide ranging line of chemical process pumps designed to solve the most demanding chemical handling applications. Corrosion Resistant Materials To Handle Aggressive Chemicals And High Purity Applications.
