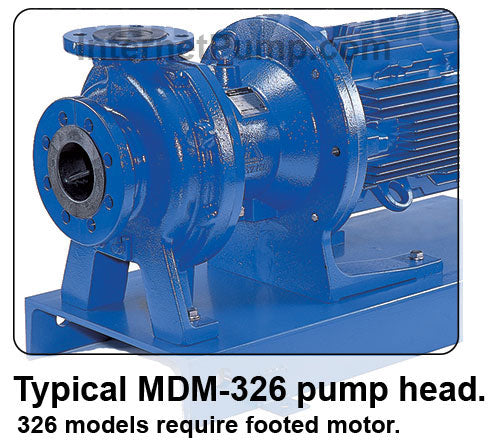

Iwaki Pump # MDM326EKK10 - MDM-326EKK10 Mag-Drive Pump End Only
Iwaki Pump # MDM326EKK10 - MDM-326EKK10 Mag-Drive Pump End Only
Iwaki MDM326EKK10 MDM-326EKK10 Mag-Drive Pump End Only. No Motor. Best Efficiency Capacity: 247 GPM, Best Efficiency Capacity: 150 Feet of Head, 3" Flanged Inlet x 2" Flanged Outlet, Carbon Fiber Reinforced ETFE Body, Silicon Carbide Bearings. Manufacturer: Genuine Iwaki, new. MDM-326EKK10
Regular price
$ 8,068.44 USD
Regular price
Sale price
$ 8,068.44 USD
Unit price
/
per
Shipping calculated at checkout.
Out of Stock.
Couldn't load pickup availability
FEATURES :
Pump Body: CFRETFE - Carbon Fiber Reinforced ETFE. (Ethylene Tetrafluoroethylene)
Port Size: 3" Flanged Inlet and 2" Flanged Outlet.
Flow: Best Efficiency Capacity: 247 GPM at 60Hz. Minimum Flow 13 GPM.
Pressure: Best Efficiency Capacity: 150 Feet of Head.
Impeller: CFRETFE - Carbon Fiber Reinforced ETFE. (Ethylene Tetrafluoroethylene)
Shaft Seal: No Seals On Mag Drive Pumps, PTFE Body Gasket.
Shaft: Silicon Carbide.
Wetted BearingMaterials: Silicon Carbide Impeller to Shaft Bearing.Silicon Carbide Thrust Collars.PTFE Outboard Rear Thrust Collar.
Motor: Requires 10HP Footed 215TC Frame Motor.
APPLICATIONS:
MAGNETIC DRIVE CENTRIFUGAL PUMP A wide ranging line of chemical process pumps designed to solve the most demanding chemical handling applications. Corrosion Resistant Materials To Handle Aggressive Chemicals And High Purity Applications.
