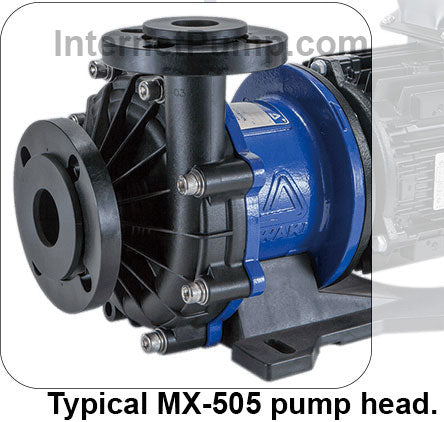

Iwaki Pump # MX-505-6CV - Mag-Drive Pump End Only
Iwaki Pump # MX-505-6CV - Mag-Drive Pump End Only
Iwaki MX-505-6CV Mag-Drive Pump End Only. No Motor. Carbon Fiber Reinforced Polypropylene Body And Impeller. up To 225 GPM, up To 86 Feet of Head. Manufacturer: Genuine Iwaki, new.
Regular price
$ 2,880.51 USD
Regular price
Sale price
$ 2,880.51 USD
Unit price
/
per
Shipping calculated at checkout.
Out of Stock.
Couldn't load pickup availability
FEATURES :
Pump Body: GFRPP- Glass Fiber Reinforced Polypropylene.
Port Size: 2-1/2" Flanged Inlet and 2" Flanged Outlet.
Flow: Up to 225 GPM (at zero pressure). Minimum Flow 13 GPM.
Pressure: Up to 86 Feet of Head (at zero flow).
Impeller: GFRPP- Glass Fiber Reinforced Polypropylene.
Shaft Seal: No Seals On Mag Drive Pumps, FKM (Viton) Body O-Ring.
Shaft: Ceramic Spindle.
Wetted BearingMaterials: Carbon Impeller to Shaft Bearing.Ceramic Thrust/Liner Ring.CFRPEEK Rear Thrust Bearing.PTFE Mouth Ring.
Motor: Requires Footless, 5HP, 60Hz, 184TC Frame Motor.
APPLICATIONS:
MAGNETIC DRIVE CENTRIFUGAL PUMP Uses a split volute pump casing that forms a vortex chamber.Self-radiating structure with heat dispersion holes in the impeller to force cool the spindle and impeller bearing.The MX Series pumps represent the latest state of the art design in plastic magnetic drive pumps. MX Series has been engineered to meet the most severe operating conditions. MX Series pumps are highly recommended for use in various production processes such as filtering, spraying, washing, plating, chemical transfer/blending, and etching in surface treatment appplications.
