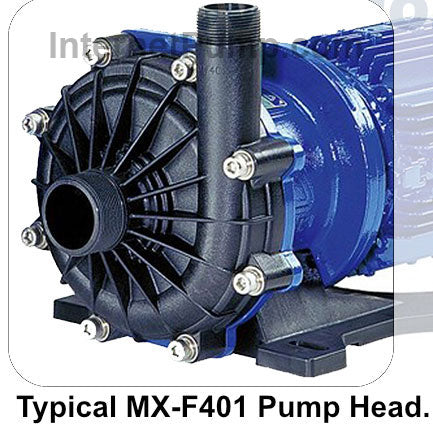

Iwaki Pump # MX-F401CFVX - Mag-Drive Pump End Only
Iwaki Pump # MX-F401CFVX - Mag-Drive Pump End Only
Iwaki MX-F401CFVX Mag-Drive Pump End Only. No Motor. Carbon Fiber Reinforced Ethylene Tetrafluoroethylene Body And Impeller. up To 75 GPM, up To 50 Feet of Head. Manufacturer: Genuine Iwaki, new.
Regular price
$ 1,650.91 USD
Regular price
Sale price
$ 1,650.91 USD
Unit price
/
per
Shipping calculated at checkout.
Out of Stock.
Couldn't load pickup availability
FEATURES :
Pump Body: CFRETFE- Carbon Fiber Reinforced Ethylene Tetrafluoroethylene.
Port Size: 1-1/2" NPT Threaded Male Inlet and Outlet.
Flow: Up to 75 GPM (at zero pressure).
Pressure: Up to 50 Feet of Head (at zero flow).
Impeller: CFRETFE- Carbon Fiber Reinforced Ethylene Tetrafluoroethylene.
Shaft Seal: No Seals On Mag Drive Pumps, FKM (Viton) Body O-Ring.
Shaft: Alumina Ceramic Spindle.
Wetted BearingMaterials: Carbon Impeller to Shaft Bearing.Alumina Ceramic Thrust/Liner Ring.CFRETFE Rear Thrust Collar.PTFE Mouth Ring.
Motor: Requires Footless, 1-1/2HP, 60Hz, 56C Frame Motor.
APPLICATIONS:
MAGNETIC DRIVE CENTRIFUGAL PUMP Uses a split volute pump casing that forms a vortex chamber.Self-radiating structure with heat dispersion holes in the impeller to force cool the spindle and impeller bearing.The MX Series pumps represent the latest state of the art design in plastic magnetic drive pumps. MX Series has been engineered to meet the most severe operating conditions. MX Series pumps are highly recommended for use in various production processes such as filtering, spraying, washing, plating, chemical transfer/blending, and etching in surface treatment appplications.
