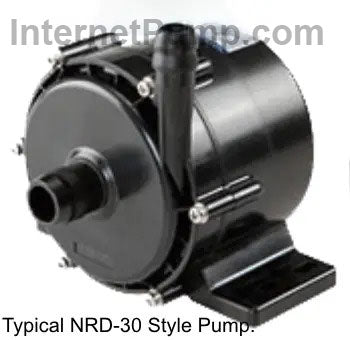

Iwaki Pump # NRD-30TV24-N - Direct Drive Seal-Less Centrifugal Pump
Iwaki Pump # NRD-30TV24-N - Direct Drive Seal-Less Centrifugal Pump
Iwaki NRD-30TV24-N Direct Drive Seal-Less Centrifugal Pump, 1/2" NPT Inlet, 3/8" NPT Outlet, up To 6.2 GPM, up to 36.1 Feet of Head, 24 Volts DC. Temperature Rated From 0C to 80C. Manufacturer: Genuine Iwaki, new.
Regular price
$ 397.18 USD
Regular price
Sale price
$ 397.18 USD
Unit price
/
per
Shipping calculated at checkout.
We currently have 2 in stock, and can ship today before 4 PM.
Couldn't load pickup availability
FEATURES :
Pump Body: GFRPPE- Glass Fiber Reinforced Polypropylene.
Port Size: 1/2" NPT Threaded Inlet and 3/8" NPT Threaded Outlet Ports.
Flow: Up to 6.2 GPM (at zero pressure).
Pressure: Up to 36.1 Feet of Head (at zero flow).
Impeller: GFRPP- Glass Fiber Reinforced Polypropylene.
Shaft Seal: No Seals On Direct Drive Pumps, FKM (Viton) Body O-Ring, EPDM Optional.
Shaft: Alumina Ceramic Spindle.
Wetted BearingMaterials: PTFE (Teflon) Impeller to Shaft Bearing.Alumina Ceramic Thrust Ring.
Motor: Brushless 24 Volt DC.
APPLICATIONS:
DIRECT DRIVE SEAL-LESS CENTRIFUGAL PUMP Corrosion Resistant Materials To Handle Chemicals And High Purity Applications.Compact And Quiet Energy Efficient Design.Few Moving Parts For Easy Maintenance.
View full details
Pump Body: GFRPPE- Glass Fiber Reinforced Polypropylene.
Port Size: 1/2" NPT Threaded Inlet and 3/8" NPT Threaded Outlet Ports.
Flow: Up to 6.2 GPM (at zero pressure).
Pressure: Up to 36.1 Feet of Head (at zero flow).
Impeller: GFRPP- Glass Fiber Reinforced Polypropylene.
Shaft Seal: No Seals On Direct Drive Pumps, FKM (Viton) Body O-Ring, EPDM Optional.
Shaft: Alumina Ceramic Spindle.
Wetted BearingMaterials: PTFE (Teflon) Impeller to Shaft Bearing.Alumina Ceramic Thrust Ring.
Motor: Brushless 24 Volt DC.
APPLICATIONS:
DIRECT DRIVE SEAL-LESS CENTRIFUGAL PUMP Corrosion Resistant Materials To Handle Chemicals And High Purity Applications.Compact And Quiet Energy Efficient Design.Few Moving Parts For Easy Maintenance.
