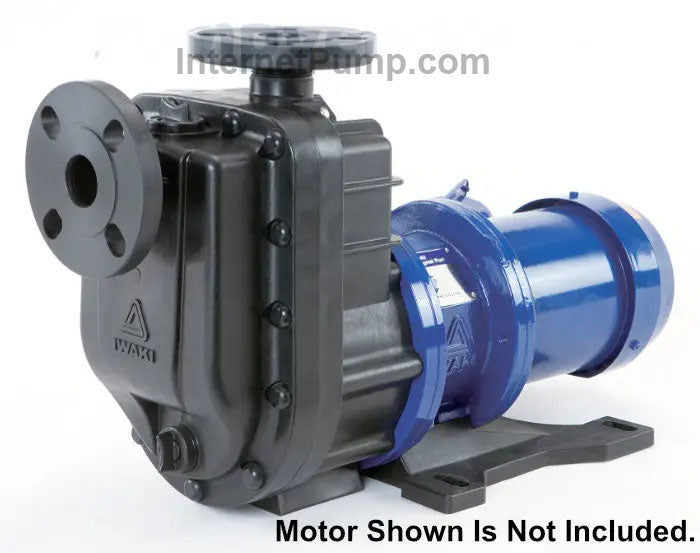

Iwaki Pump # SMX-443CAVXU - Mag Drive Centrifugal Pump Head Only
Iwaki Pump # SMX-443CAVXU - Mag Drive Centrifugal Pump Head Only
Iwaki SMX-443CAVXU Mag Drive Centrifugal Pump Head Only, Self-Priming, up To 90 GPM, 1-1/2" Flanged Ports. Requires a Motor. Manufacturer: Genuine Iwaki, new.
Regular price
$ 2,234.72 USD
Regular price
Sale price
$ 2,234.72 USD
Unit price
/
per
Shipping calculated at checkout.
We currently have 1 in stock, and can ship today before 4 PM.
Couldn't load pickup availability
FEATURES :
Pump Body: GFRPP- Glass Fiber Reinforced Polypropylene.Self-Priming to 13 Feet Maximum For Water.
Port Size: 1-1/2" Flanged Inlet and Outlet Ports.
Flow: Up to 90 GPM (at zero pressure). 2.6 GPM Minimum Flow.
Pressure: Standard Operating Point is 55GPM at 53 Feet of Head.
Impeller: GFRPP- Glass Fiber Reinforced Polypropylene.
Shaft Seal: No Seals On Mag Drive Pumps, FKM (Viton) Body O-Ring, EPDM Optional.
Shaft: Alumina Ceramic Spindle.
Wetted BearingMaterials: Carbon Impeller to Shaft Bearing.Alumina Ceramic Liner Ring.PTFE Mouth Ring.CFRPPS Rear Thrust Ring.
Motor: Not Included. Requires 3 HP, 60Hz, 3450 RPM Motor With 145TC Frame.
APPLICATIONS:
MAG DRIVE CENTRIFUGAL PUMP Corrosion Resistant Materials To Handle Chemicals And High Purity Applications.Self-Priming.CA Models Can Be Run Dry For Brief Periods.
View full details
Pump Body: GFRPP- Glass Fiber Reinforced Polypropylene.Self-Priming to 13 Feet Maximum For Water.
Port Size: 1-1/2" Flanged Inlet and Outlet Ports.
Flow: Up to 90 GPM (at zero pressure). 2.6 GPM Minimum Flow.
Pressure: Standard Operating Point is 55GPM at 53 Feet of Head.
Impeller: GFRPP- Glass Fiber Reinforced Polypropylene.
Shaft Seal: No Seals On Mag Drive Pumps, FKM (Viton) Body O-Ring, EPDM Optional.
Shaft: Alumina Ceramic Spindle.
Wetted BearingMaterials: Carbon Impeller to Shaft Bearing.Alumina Ceramic Liner Ring.PTFE Mouth Ring.CFRPPS Rear Thrust Ring.
Motor: Not Included. Requires 3 HP, 60Hz, 3450 RPM Motor With 145TC Frame.
APPLICATIONS:
MAG DRIVE CENTRIFUGAL PUMP Corrosion Resistant Materials To Handle Chemicals And High Purity Applications.Self-Priming.CA Models Can Be Run Dry For Brief Periods.
