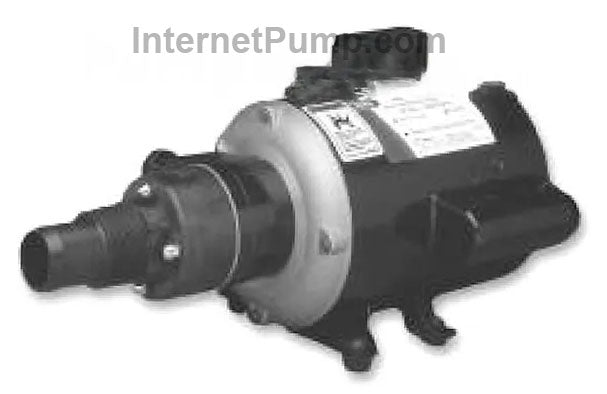

Jabsco Pump # 18690-0000 Macerator Pump
Jabsco Pump # 18690-0000 Macerator Pump
Jabsco 18690-0000 Heavy Duty Macerator Pump 115VAC 14GPM. 14GPM, 1-1/2" Inlet, 1" Hose Outlet, AC Voltage
Regular price
$ 1,042.39 USD
Regular price
Sale price
$ 1,042.39 USD
Unit price
/
per
Shipping calculated at checkout.
We currently have 2 in stock, and can ship today before 4 PM.
Couldn't load pickup availability
FEATURES :
Pump Body: Plastic, Self-Priming Flexible Impeller with Stainless Steel Wear Plates.
Port Size: Inlet – 1-1/2" External Pipe Thread Outlet – 1" ID Hose Barb
Flow: 14 GPM
Macerator: Cast Bronze Cutter Plate reduces particle size to 1/8" maximum.
Impeller: Nitrile
Shaft Seal: Lip Type
Motor: 115 Vac, AC Induction Type Single Phase, 60 Hz Thermal Overload Protection.
APPLICATIONS:
The Jabsco 18690-0000 AC macerator pump unit is the ideal answer to waste handling problems for marine, recreational vehicle and domestic uses. The macerator section grinds waste down to a particle size of 1/8" maximum so it can be pumped easily through a 1" hose discharge line. The pump is self-priming, permitting the unit to be mounted above or below the tank in a convenient location. For optimal efficiency, locate pump as close to waste source as practical. Empties a 30 gallon holding tank in only 3 minutes. The 18690-0000 waste pump will macerate and pump all waste and tissue normally found in marine waste systems.
View full details
Pump Body: Plastic, Self-Priming Flexible Impeller with Stainless Steel Wear Plates.
Port Size: Inlet – 1-1/2" External Pipe Thread Outlet – 1" ID Hose Barb
Flow: 14 GPM
Macerator: Cast Bronze Cutter Plate reduces particle size to 1/8" maximum.
Impeller: Nitrile
Shaft Seal: Lip Type
Motor: 115 Vac, AC Induction Type Single Phase, 60 Hz Thermal Overload Protection.
APPLICATIONS:
The Jabsco 18690-0000 AC macerator pump unit is the ideal answer to waste handling problems for marine, recreational vehicle and domestic uses. The macerator section grinds waste down to a particle size of 1/8" maximum so it can be pumped easily through a 1" hose discharge line. The pump is self-priming, permitting the unit to be mounted above or below the tank in a convenient location. For optimal efficiency, locate pump as close to waste source as practical. Empties a 30 gallon holding tank in only 3 minutes. The 18690-0000 waste pump will macerate and pump all waste and tissue normally found in marine waste systems.
