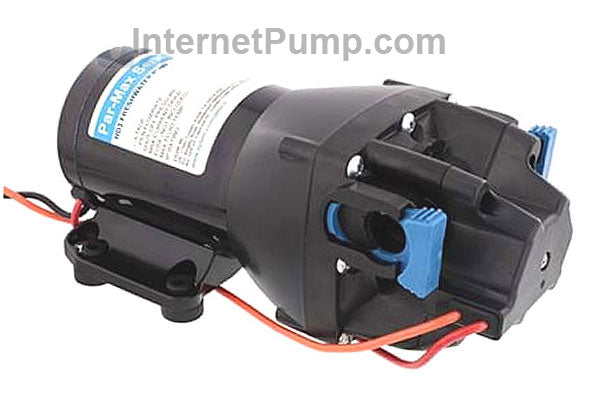

Jabsco Pump # Q301J-118S-3A Par-Max HD3 Water System Pump 12V
Jabsco Pump # Q301J-118S-3A Par-Max HD3 Water System Pump 12V
Jabsco Q301J-118S-3A Par-Max HD3 Water System Pump, 12V, Up To 3GPM, 60psi Switch.
Regular price
$ 195.15 USD
Regular price
Sale price
$ 195.15 USD
Unit price
/
per
Shipping calculated at checkout.
Out of Stock.
Couldn't load pickup availability
FEATURES :
Pump Body: Glass Fiber Reinforced Polypropylene, Four or Five Piston, Diaphragm Pump
Port Fittings: HD3 Series: Standard Size Snap-In Port Fittings, 1/2" Straight Hosebarb.HD4 Series: Standard Size Snap-In Port Fittings, 1/2" Straight Hosebarb.HD5 Series: Standard Size Snap-In Port Fittings, 1/2" and 3/4" Straight Hosebarb.HD6 Series: "Large Format" Size Snap-In Port Fittings, 3/4" Straight Hosebarb.
Flow: HD3 Series: Up to 3GPM (11 LPM)HD4 Series: Up to 4GPM (15 LPM)HD5 Series: Up to 5GPM (19 LPM)HD6 Series: Up to 6GPM (23 LPM)
Pressure: 40 PSI or 60 PSI Depending on the Model Selected.Integrated Bypass.
Motor: 12 Volt or 24 Volt. Brushed Permanent Magnet, TENV, Powder Coated Shell.Meets USCG Regulation ISO8846.Certifications: CE and RCM. IPX6.
Strainer: 40 Mesh Strainer Included.
APPLICATIONS:
HD HEAVY DUTY SERIES, AUTOMATIC WATER SYSTEM PUMP Self-Priming to 7 feet. Runs Dry Without Damage. Integrated Bypass for Smooth Flow and Less Cycling. Snap-In Ports. Pressure Switch Built-In. The Par-Max HD Automatic Water System Pump is designed for self-contained boats and RV’s with multiple fixture water systems. The system operates automatically. When a fixture is opened, the pump begins operation to provide a smooth flow from tank to faucet. Closing the faucet automatically shuts the pump off.
View full details
Pump Body: Glass Fiber Reinforced Polypropylene, Four or Five Piston, Diaphragm Pump
Port Fittings: HD3 Series: Standard Size Snap-In Port Fittings, 1/2" Straight Hosebarb.HD4 Series: Standard Size Snap-In Port Fittings, 1/2" Straight Hosebarb.HD5 Series: Standard Size Snap-In Port Fittings, 1/2" and 3/4" Straight Hosebarb.HD6 Series: "Large Format" Size Snap-In Port Fittings, 3/4" Straight Hosebarb.
Flow: HD3 Series: Up to 3GPM (11 LPM)HD4 Series: Up to 4GPM (15 LPM)HD5 Series: Up to 5GPM (19 LPM)HD6 Series: Up to 6GPM (23 LPM)
Pressure: 40 PSI or 60 PSI Depending on the Model Selected.Integrated Bypass.
Motor: 12 Volt or 24 Volt. Brushed Permanent Magnet, TENV, Powder Coated Shell.Meets USCG Regulation ISO8846.Certifications: CE and RCM. IPX6.
Strainer: 40 Mesh Strainer Included.
APPLICATIONS:
HD HEAVY DUTY SERIES, AUTOMATIC WATER SYSTEM PUMP Self-Priming to 7 feet. Runs Dry Without Damage. Integrated Bypass for Smooth Flow and Less Cycling. Snap-In Ports. Pressure Switch Built-In. The Par-Max HD Automatic Water System Pump is designed for self-contained boats and RV’s with multiple fixture water systems. The system operates automatically. When a fixture is opened, the pump begins operation to provide a smooth flow from tank to faucet. Closing the faucet automatically shuts the pump off.
