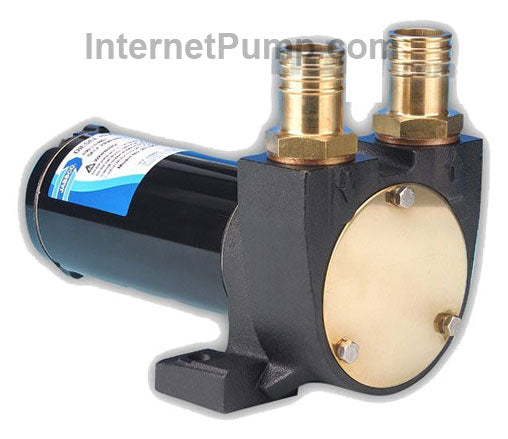

Jabsco Pump # VR100-2120 Sliding Vane Diesel Transfer Pump
Jabsco Pump # VR100-2120 Sliding Vane Diesel Transfer Pump
Jabsco VR100-2120 Sliding Vane Diesel Transfer Pump, 24V, Up To 28GPM, With 1"BSP Threaded Ports. Hose Barb Fittings Are Not Included
Regular price
$ 993.83 USD
Regular price
Sale price
$ 993.83 USD
Unit price
/
per
Shipping calculated at checkout.
We currently have 3 in stock, and can ship today before 4 PM.
Couldn't load pickup availability
Download PDF Manual
FEATURES :
Pump Body: Cast Iron
Port Size: Vertical 1" BSP or 32mm hose adaptors (1-1/4")
Flow: 100 litres/minute (28 GPM)
Rotor: Sintered Iron
Vanes: Sintered Bronze
Shaft Seal: Nitrile Lip Seal
Shaft: Stainless Steel
Motor: 24V DC permanent magnet, corrosion resistant IP55 protected. Continuously rated up to 6 metres (20 ft.), total head of diesel fuel at 20°C (68°F).
APPLICATIONS:
SLIDING VANE DIESEL TRANSFER PUMP Designed for refuelling large size diesel powered vehicles [typical tank sizes 400 - 1500 litres (100 - 400 gallons)] from drums. Suitable for mounting to the following equipment: Excavators, Cranes, Road rollers (compactors), Pavers, Agricultural machines, Generators, Helicopters. Suitable for diesel fuel, Kerosene, Paraffin, Hydraulic oils, Oils up to 150 centi Stokes (750 Saybolt Universal) viscosity. Self priming up to 5 metres (16 feet.).
