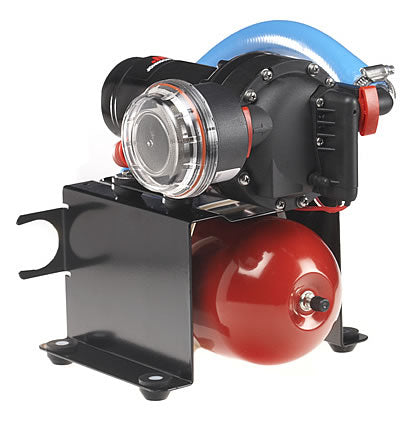

Johnson Pump # 10-13408-01 Aqua Jet UNO 3.5 Water Pressure System
Johnson Pump # 10-13408-01 Aqua Jet UNO 3.5 Water Pressure System
Johnson 10-13408-01 Aqua Jet UNO 3.5 12Volt Water Pressure System 1/2" Hose Ports 40psi.
Regular price
$ 453.30 USD
Regular price
Sale price
$ 453.30 USD
Unit price
/
per
Shipping calculated at checkout.
We currently have 1 in stock, and can ship today before 4 PM.
Couldn't load pickup availability
Download PDF Manual
FEATURES :
Pump Body: Polypropylene
Valve Housing: Polypropylene
Port Size: 1/2" Hose (ø 18 mm)
Flow: 3.1 GPM (11.8 L/Min) for Aqua Jet UNO 3.5 5.1 GPM (19.4 L/Min) for Aqua Jet UNO 5.2
Pressure: Cut-In: 25 PSI, 1.7 barCut-Out: 40 PSI, 2.8 bar
Valves: Santoprene
Diaphragm: Santoprene
Accumulator Tank: 2 Liter with Internal Bladder
Motor: 12 or 24 VDC with built in thermal protection. Duty cycle: Intermittent, max 20 min. The motor is ignition protected according to ISO 8846 (Small craft – Electrical devices – Protection against ignition of surrounding flammable gases). 100 Watt for UNO 3.5, 150 Watt for UNO 5.2.
APPLICATIONS:
The Aqua Jet UNO pump is a five chamber positive displacement diaphragm pump system with Accumulator Tank. This pump is the ideal choice for pressurizing water in a closed system such as that found in a boat or in a recreational vehicle. It can easily build the pressure required for a pressurized water supply system. Quiet operation • Smooth flowing • Self priming ( 2m 6.5ft for UNO 3.5) (2.5m 8.2ft for UNO 5.2) • Integrated pressure switch turns pump on and off automatically when tap is opened and closed • Dry running without damage • Low power consumption • Quick disconnect fittings
