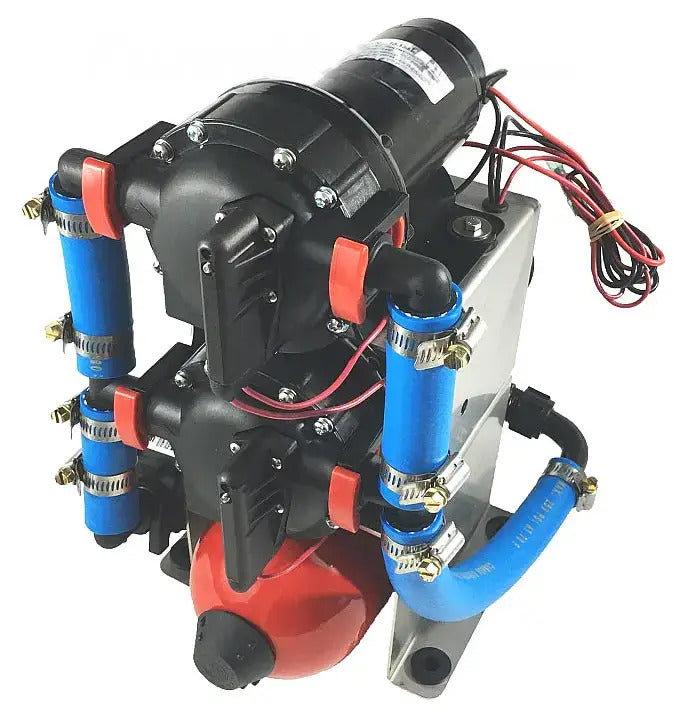

Johnson Pump # 10-13409-01 Aqua Jet DUO 10.4 Water Pressure System
Johnson Pump # 10-13409-01 Aqua Jet DUO 10.4 Water Pressure System
Johnson 10-13409-01 Aqua Jet DUO 10.4 12Volt Water Pressure System 1/2" Hose Ports 40psi.
Regular price
$ 906.60 USD
Regular price
Sale price
$ 906.60 USD
Unit price
/
per
Shipping calculated at checkout.
We currently have 3 in stock, and can ship today before 4 PM.
Couldn't load pickup availability
FEATURES :
Pump Body: Polypropylene
Valve Housing: Polypropylene
Port Size: 1/2" Hose (ø 18 mm)
Flow: 9.5 GPM (36 L/Min) Max
Pressure: Pump 1 Cut-In: 20.3 PSI, 1.4 bar Pump 2 Cut-In: 25 PSI, 1.7 bar Pump 1 Cut-Out: 29 PSI, 2.0 barPump 2 Cut-Out: 41 PSI, 2.8 bar
Valves: Santoprene
Diaphragm: Santoprene
Accumulator Tank: 2 Liter with Internal Bladder
Motor: 12 or 24 VDC with built in thermal protection. Duty cycle: Intermittent, max 20 min. The motor is ignition protected according to ISO 8846 (Small craft – Electrical devices – Protection against ignition of surrounding flammable gases). 300 Watts total.
APPLICATIONS:
The Aqua Jet DUO pump is a five chamber positive displacement diaphragm dual pump system with Accumulator Tank. This pump is the ideal choice for pressurizing water in a closed system such as that found in a boat or in a recreational vehicle. It can easily build the pressure required for a pressurized water supply system. Quiet operation • Smooth flowing • Self priming (2.5m 8.2ft) • Integrated pressure switch turns pump on and off automatically when tap is opened and closed • Dry running without damage • Low power consumption • Quick disconnect fittings
