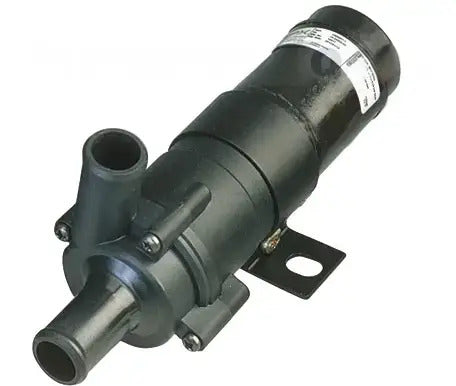

Johnson Pump # CM10P7-1 10-24502-04 Mag Drive Centrifugal Circulating Pump
Johnson Pump # CM10P7-1 10-24502-04 Mag Drive Centrifugal Circulating Pump
Johnson 10-24502-04 Mag Drive Centrifugal Circulating Pump, 24Volt, Up To 5.0GPM, 3/4" Hose Ports, Fixed Wire Leads. CM10P7-1
Regular price
$ 177.20 USD
Regular price
Sale price
$ 177.20 USD
Unit price
/
per
Shipping calculated at checkout.
We currently have 1 in stock, and can ship today before 4 PM.
Couldn't load pickup availability
Download PDF Manual
FEATURES :
Pump Body: PPA Thermoplastic
Port Size: 5/8" (16mm) Hose or 3/4" (20mm) Hose Depending on the Model
Flow: From 4.0 GPM (15 L/Minute) up to 6.9GPM (26 L/Minute) Depending on the Model
Impeller: PPS Thermoplastic
Shaft: Stainless Steel
Housing O-Ring: EPDM
Motor: 12 or 24 VDC Enclosed Permanent Magnet, Ball Bearing, Continuous Duty.Up To 5000 Hour Motor Life.IP67 Rating, Weather-Proof and Dust-Proof, Not Submersible.Maximum 14 Watt Draw on CM10 ModelsMaximum 27 Watt Draw on CM30 Models.
APPLICATIONS:
A line of compact Magnetic Driven centrifugal pumps, the CM10P7-1 and CM30P7-1 models combine high flow rates with very low electric current consumption, making them ideally suited for circulating water in live fish tanks or heating and cooling systems in buses and limousines. Designed for continuous operation with water or water/glycol mixture (maximum 60% glycol). Not Warrantied For Salt Water Use But We Have Seen Customers Use Them For Salt Water. Liquid temperature: Minimum -40F (-40C), Maximum +212F (+100°C), do not allow water to freeze inside pump.
