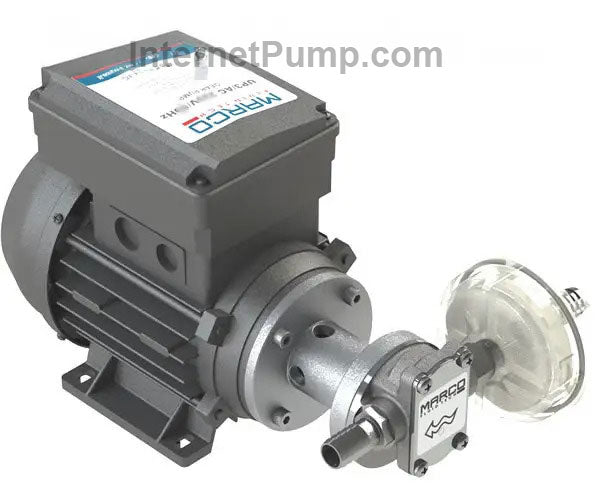

Marco Pump # M164-001-1B UP3/AC Gear Pump 110V 60HZ 2.6GPM
Marco Pump # M164-001-1B UP3/AC Gear Pump 110V 60HZ 2.6GPM
Marco M164-001-1B Model UP3/AC, Gear Pump, Nickel Plated Brass Body, Bronze Gears, Stainless Steel Shaft, 3/8" BSP (British) Female Threaded Ports and 1/2" Hose Barb, 110V 60Hz, up To 3.2 GPM, up To 87 PSI, Self-Priming to 4.9 Feet, 1.6 Amp Draw, 4 Amp Fuse Required, 150 Watts. For Diesel Transfer And Refueling, Light Weight Oils, Fresh Water and Glycol Antifreeze. Manufacturer: Genuine Marco, new. M1640011B, M164 001 1B, UP3/AC
Regular price
$ 826.50 USD
Regular price
Sale price
$ 826.50 USD
Unit price
/
per
Shipping calculated at checkout.
We currently have 7 in stock, and can ship today before 4 PM.
Couldn't load pickup availability
FEATURES For UPx/AC Series Gear Pumps and Flexible Impeller Pumps:
Pump Body: Nickel Plated Brass.
Port Size: 3/8" or 1/2" BSP (British) Female Threaded Ports AND NPT Male or Hose Barb Fittings Depending on Model.
Flow: Up To 2.6 GPM, 3.2 GPM, 7.9 GPM, 9.0 GPM or 9.5 GPM Depending on Model.
Pressure: Up To 14.5 PSI, 17.4 PSI, 72.5 PSI or 87 PSI Depending on Model.
Gears / Impeller: Bronze Gears, PTFE Gears or Nitrile Impeller Depending on Model.
Shaft Seal: Lip Type.
Shaft: Stainless Steel.
Motor: 110 Volt 60 Hz or 230 Volt 50 Hz AC Models. Heavy Duty Ball Bearing Design. IP Protection 55.
APPLICATIONS:
The Flexible Impeller Models Are Primarily For Fresh Water and Salt Water Transfer, Bilge Water, Waste Water, Glycol Antifreeze. The Bronze Gear and PTFE Gear Models Are Primarily For Diesel Transfer And Refueling, Light Weight Oils, Fresh Water and Glycol Antifreeze. Self-Priming.
View full details
Pump Body: Nickel Plated Brass.
Port Size: 3/8" or 1/2" BSP (British) Female Threaded Ports AND NPT Male or Hose Barb Fittings Depending on Model.
Flow: Up To 2.6 GPM, 3.2 GPM, 7.9 GPM, 9.0 GPM or 9.5 GPM Depending on Model.
Pressure: Up To 14.5 PSI, 17.4 PSI, 72.5 PSI or 87 PSI Depending on Model.
Gears / Impeller: Bronze Gears, PTFE Gears or Nitrile Impeller Depending on Model.
Shaft Seal: Lip Type.
Shaft: Stainless Steel.
Motor: 110 Volt 60 Hz or 230 Volt 50 Hz AC Models. Heavy Duty Ball Bearing Design. IP Protection 55.
APPLICATIONS:
The Flexible Impeller Models Are Primarily For Fresh Water and Salt Water Transfer, Bilge Water, Waste Water, Glycol Antifreeze. The Bronze Gear and PTFE Gear Models Are Primarily For Diesel Transfer And Refueling, Light Weight Oils, Fresh Water and Glycol Antifreeze. Self-Priming.
