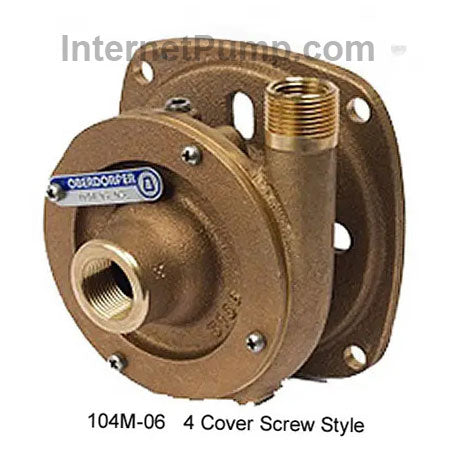

Oberdorfer Pump # 104M-06-F13 Centrifugal Pump
Oberdorfer Pump # 104M-06-F13 Centrifugal Pump
Oberdorfer 104M-06-F13 Centrifugal Pump and Motor Assembly, 1/3HP ODP 115V Only Light Duty Motor 60Hz, with 416SS Motor Shaft, Inlet Port 3/4" NPT Female, Outlet Port 1/2" NPT Female and 3/4" NPT Male. Replaces 104M-F13
Regular price
$ 1,335.19 USD
Regular price
Sale price
$ 1,335.19 USD
Unit price
/
per
Shipping calculated at checkout.
Out of Stock.
Couldn't load pickup availability
FEATURES :
Pump Body: Bronze
Ports: Inlet: 3/4" NPT Female Outlet: 1/2" NPT Female and 3/4" NPT Male
Flow: Up To 24 GPM Maximum
Pressure: Up To 23 PSI, 53 feet of head
Impeller: Bronze Centrifugal
Shaft Seal: Teflon Barrier Seal to Protect Motor Bearings. Carbon Face Mechanical Water Seal. Buna is Standard, Viton and Teflon available.
Shaft: 416 Stainless Steel is Standard, 316 Stainless Steel is an Upgrade, Monel is the Highest Grade of Stainless Steel and is Recommended for Salt Water Marine Use
Motor / Drive: Pump heads mount to standard footed NEMA 56J jet pump motors. A wide variety of motors are available and we can assemble for you.
APPLICATIONS:
BRONZE CLOSE COUPLED CENTRIFUGAL PUMP This close-coupled pump uses a standard NEMA J-Flange Jet Pump Motor with weld-on base and threaded shaft end to accept the pump impeller. The pump uses a mechanical type shaft seal with a Buna rubber element. It is suitable for water, oils, and some mild solvents and it is limited to 212 F. Viton® seals and Teflon seals (Chemlon) are available for severe solvents, difficult chemicals, and elevated temperatures. Will Handle Contaminated Liquids. Extremely Quiet. A Standard in the Marine Air Conditioning Industry.
View full details
Pump Body: Bronze
Ports: Inlet: 3/4" NPT Female Outlet: 1/2" NPT Female and 3/4" NPT Male
Flow: Up To 24 GPM Maximum
Pressure: Up To 23 PSI, 53 feet of head
Impeller: Bronze Centrifugal
Shaft Seal: Teflon Barrier Seal to Protect Motor Bearings. Carbon Face Mechanical Water Seal. Buna is Standard, Viton and Teflon available.
Shaft: 416 Stainless Steel is Standard, 316 Stainless Steel is an Upgrade, Monel is the Highest Grade of Stainless Steel and is Recommended for Salt Water Marine Use
Motor / Drive: Pump heads mount to standard footed NEMA 56J jet pump motors. A wide variety of motors are available and we can assemble for you.
APPLICATIONS:
BRONZE CLOSE COUPLED CENTRIFUGAL PUMP This close-coupled pump uses a standard NEMA J-Flange Jet Pump Motor with weld-on base and threaded shaft end to accept the pump impeller. The pump uses a mechanical type shaft seal with a Buna rubber element. It is suitable for water, oils, and some mild solvents and it is limited to 212 F. Viton® seals and Teflon seals (Chemlon) are available for severe solvents, difficult chemicals, and elevated temperatures. Will Handle Contaminated Liquids. Extremely Quiet. A Standard in the Marine Air Conditioning Industry.
