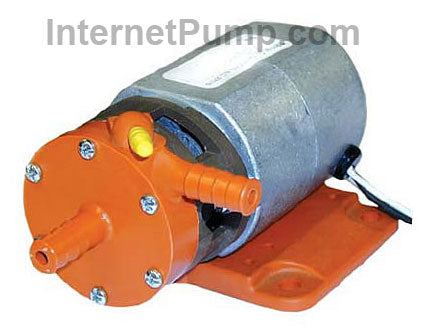

Oberdorfer Pump # 142-01-A47 Centrifugal Pump
Oberdorfer Pump # 142-01-A47 Centrifugal Pump
Oberdorfer 142-01-A47 Centrifugal Pump, 230V Motor With Vent Double Insulated.
Regular price
$ 493.75 USD
Regular price
Sale price
$ 493.75 USD
Unit price
/
per
Shipping calculated at checkout.
Out of Stock.
Couldn't load pickup availability
FEATURES :
Pump Body: Body and Adapter made of non-metallic glass reinforced Nylon 6/6
Ports: 3/8 Hose Connection In 3/8 Hose Connection Out 1/8 Air Vent Hose Connection
Flow: 2.2 GPM Max (AC Motors)
Pressure: 80.8 PSI Max, 35 feet of head (AC Motors)
Impeller: Centrifugal Impeller made of non-metallic glass reinforced PPS
Shaft Seal: Mechanical Seal - Type 6A carbon/ceramic faces, Viton elastomers
Motor / Drive: Universal - Open Drip Proof Motors with internal fan cooling, UL, CSA . No 18 Wire leads - 25" long. 120VAC, 240VAC (Optional: double insulation) and 12VDC versions.
APPLICATIONS:
SMALL PLASTIC CENTRIFUGAL MOTOR PUMP UNIT These compact high speed centrifugal pumps are suited for a variety of industrial and commercial applications. They are particulary well suited for portable liquid cleaning machinery, laboratory use and spray installations. The design’s symmetry provides a wide range of configuration possibilities allowing ready customization of discharge port position and optional air vent orientation relative to the motor base. Integrated Air Vent - prevents loss of prime. Compact and Lightweight. Installation/Mounting Versatility.
