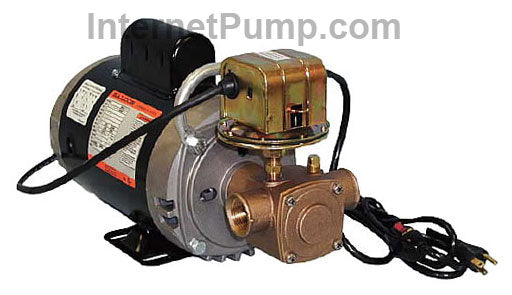

Oberdorfer Pump # 405M-04-M26 Flexible Impeller Utility Pump
Oberdorfer Pump # 405M-04-M26 Flexible Impeller Utility Pump
Oberdorfer 405M-04-M26 Flexible Impeller Utility Pump, 1"NPT Ports, Neoprene Impeller, 3/4HP 115/230V ODP Motor.
Regular price
$ 1,569.83 USD
Regular price
Sale price
$ 1,569.83 USD
Unit price
/
per
Shipping calculated at checkout.
We currently have 2 in stock, and can ship today before 4 PM.
Couldn't load pickup availability
FEATURES :
Pump Body: Bronze
Ports: 1" NPT and 1 1/2" Hose
Flow: 24 GPM at 20 feet of head
Impeller: Neoprene Standard, Buna Optional
Shaft Seal: Mechanical
Shaft: Stainless Steel
Motor / Drive: Close coupled Rubber Impeller Pumps are mounted directly onto the motor without the use of a shaft coupling. This pump is designed to be coupled to a Nema C 56C faced motor. It uses an aluminum adapter plate to accommodate the pump. The gas engine mount has its own adapter. We can supply additional motors and assemble for you.
APPLICATIONS:
RUBBER IMPELLER PUMP BRONZE CLOSE COUPLED Close coupled Rubber Impeller Pumps are made of high quality bronze for maximum corrosion resistance. The rubber impeller is mounted on a separate stainless steel shaft which is counterbored on the outer end in order to slide over the carbon steel motor shaft. Ball or sleeve bearings in the motor or engine support the shaft. Model 405M has a mechanical seal. Impellers are made of Neoprene rubber, Buna N impellers are available on request. Suction lifts of 15 ft. are possible when pump is fully primed. Portable. Compact. Easy Impeller Replacement. Vacuum Switch Shut-off Optional.
View full details
Pump Body: Bronze
Ports: 1" NPT and 1 1/2" Hose
Flow: 24 GPM at 20 feet of head
Impeller: Neoprene Standard, Buna Optional
Shaft Seal: Mechanical
Shaft: Stainless Steel
Motor / Drive: Close coupled Rubber Impeller Pumps are mounted directly onto the motor without the use of a shaft coupling. This pump is designed to be coupled to a Nema C 56C faced motor. It uses an aluminum adapter plate to accommodate the pump. The gas engine mount has its own adapter. We can supply additional motors and assemble for you.
APPLICATIONS:
RUBBER IMPELLER PUMP BRONZE CLOSE COUPLED Close coupled Rubber Impeller Pumps are made of high quality bronze for maximum corrosion resistance. The rubber impeller is mounted on a separate stainless steel shaft which is counterbored on the outer end in order to slide over the carbon steel motor shaft. Ball or sleeve bearings in the motor or engine support the shaft. Model 405M has a mechanical seal. Impellers are made of Neoprene rubber, Buna N impellers are available on request. Suction lifts of 15 ft. are possible when pump is fully primed. Portable. Compact. Easy Impeller Replacement. Vacuum Switch Shut-off Optional.
