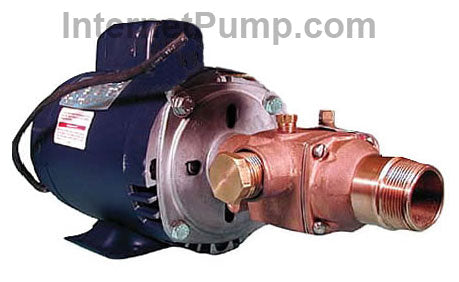

Oberdorfer Pump # 406M-04-N26 Flexible Impeller Macerator
Oberdorfer Pump # 406M-04-N26 Flexible Impeller Macerator
Oberdorfer 406M-04-N26 Flexible Impeller Macerator Pump, with 1HP, 115/230V, ODP Motor.
Regular price
$ 1,761.65 USD
Regular price
Sale price
$ 1,761.65 USD
Unit price
/
per
Shipping calculated at checkout.
We currently have 2 in stock, and can ship today before 4 PM.
Couldn't load pickup availability
FEATURES :
Pump Body: Bronze
Ports: Inlet: 1-1/2" Threads or 2" ID Hose Outlet 1" NPT or 1-1/2" ID Hose
Flow: 25 GPM Max
Pressure: 44 PSI Max, 100 feet of head
Impeller: Neoprene is Standard, Buna is Optional
Shaft Seal: Mechanical Seal
Shaft: Stainless Steel
Motor / Drive: These Close coupled Rubber Impeller Pumps are mounted directly onto the electric motor without the use of a shaft coupling. This pump is coupled to standard motors with Nema C flange. It uses a motor adapter plate to accommodate the pump. We can supply additional motors and assemble for you.
APPLICATIONS:
CLOSE COUPLED RUBBER IMPELLER MACERATOR PUMP BRONZE Portable. Compact. Easy Impeller Replacement. Macerator Easily Replaced. Reversible Wear Plate. Vacuum Switch Shut-off Pictured is Optional. Suction lifts of 15 ft. are possible when pump is fully primed. The Grab Handle shown in some images and on the PDF parts list is no longer included with the pumps and is no longer available from Oberdorfer.
View full details
Pump Body: Bronze
Ports: Inlet: 1-1/2" Threads or 2" ID Hose Outlet 1" NPT or 1-1/2" ID Hose
Flow: 25 GPM Max
Pressure: 44 PSI Max, 100 feet of head
Impeller: Neoprene is Standard, Buna is Optional
Shaft Seal: Mechanical Seal
Shaft: Stainless Steel
Motor / Drive: These Close coupled Rubber Impeller Pumps are mounted directly onto the electric motor without the use of a shaft coupling. This pump is coupled to standard motors with Nema C flange. It uses a motor adapter plate to accommodate the pump. We can supply additional motors and assemble for you.
APPLICATIONS:
CLOSE COUPLED RUBBER IMPELLER MACERATOR PUMP BRONZE Portable. Compact. Easy Impeller Replacement. Macerator Easily Replaced. Reversible Wear Plate. Vacuum Switch Shut-off Pictured is Optional. Suction lifts of 15 ft. are possible when pump is fully primed. The Grab Handle shown in some images and on the PDF parts list is no longer included with the pumps and is no longer available from Oberdorfer.
