Oberdorfer Pump # 600P-F57 Centrifugal Pump
Oberdorfer Pump # 600P-F57 Centrifugal Pump

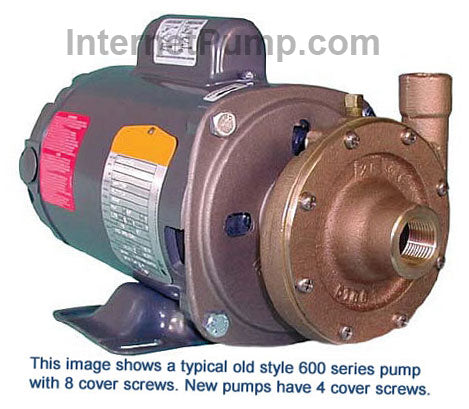

Oberdorfer 600P-F57 Centrifugal Pump, Bronze, 1/3HP 3Phase 220/440V ODP Motor.
Regular price
$ 1,153.62 USD
Regular price
Sale price
$ 1,153.62 USD
Unit price
/
per
Shipping calculated at checkout.
We currently have 2 in stock, and can ship today before 4 PM.
Couldn't load pickup availability
FEATURES :
Pump Body: Bronze
Ports: Inlet: 3/4" NPT Outlet: 1/2" NPT
Flow: 24 GPM Max
Pressure: 23 PSI Max, 53 feet of head
Impeller: Centrifugal
Shaft Seal: Mechanical seal carbon/ceramic Buna Standard, Viton or Teflon Optional
Shaft: 416 Stainless
Motor / Drive: This close coupled pump uses a standard NEMA C-Flange 56J Jet Pump Motor with weld-on base and threaded shaft end to accept the pump impeller. Many motor options available. We can supply optional motors and assemble for you.
APPLICATIONS:
BRONZE CLOSE COUPLED CENTRIFUGAL PUMP The special pump alloys used provide corrosion resistance to many liquids including water, water solutions, and a wide range of commercial chemicals. Rugged bronze construction. A standard in the marine air conditioning industry. Extremely quiet operation. O-ring housing seal eliminates gasket problems. Handles contaminated liquids. Discharge port orientation flexibility 8 positions. For marine version see Model 104M. For pedestal style version see Model 60P.
View full details
Pump Body: Bronze
Ports: Inlet: 3/4" NPT Outlet: 1/2" NPT
Flow: 24 GPM Max
Pressure: 23 PSI Max, 53 feet of head
Impeller: Centrifugal
Shaft Seal: Mechanical seal carbon/ceramic Buna Standard, Viton or Teflon Optional
Shaft: 416 Stainless
Motor / Drive: This close coupled pump uses a standard NEMA C-Flange 56J Jet Pump Motor with weld-on base and threaded shaft end to accept the pump impeller. Many motor options available. We can supply optional motors and assemble for you.
APPLICATIONS:
BRONZE CLOSE COUPLED CENTRIFUGAL PUMP The special pump alloys used provide corrosion resistance to many liquids including water, water solutions, and a wide range of commercial chemicals. Rugged bronze construction. A standard in the marine air conditioning industry. Extremely quiet operation. O-ring housing seal eliminates gasket problems. Handles contaminated liquids. Discharge port orientation flexibility 8 positions. For marine version see Model 104M. For pedestal style version see Model 60P.
