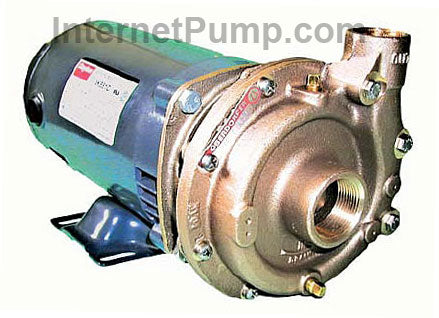

Oberdorfer Pump # 700CP Centrifugal Pump Head
Oberdorfer Pump # 700CP Centrifugal Pump Head
Oberdorfer 700CP Centrifugal Pump Head Only, 3.75" Impeller Diameter, for 3Phase Motor.
Regular price
$ 753.42 USD
Regular price
Sale price
$ 753.42 USD
Unit price
/
per
Shipping calculated at checkout.
Out of Stock.
Couldn't load pickup availability
FEATURES :
Pump Body: Bronze
Ports: Inlet: 1 1/4" NPT Outlet: 1" NPT
Flow: 96 GPM Max
Pressure: 30 PSI Max, 70 feet of head
Impeller: Centrifugal
Shaft Seal: Mechanical seal carbon/ceramic Buna Standard, Viton or Teflon Optional
Shaft: 416 Stainless
Motor / Drive: This close coupled pump uses a standard NEMA C-Flange 56J Jet Pump Motor with weld-on base and threaded shaft end to accept the pump impeller. Many motor options available. We can supply optional motors and assemble for you.
APPLICATIONS:
BRONZE CLOSE COUPLED CENTRIFUGAL PUMP Different Impeller sizes (for both single and three phase) Available for Differing Flow and Pressure Curves. The special pump alloys used provide corrosion resistance to many liquids including water, water solutions, and a wide range of commercial chemicals. Rugged bronze construction. Extremely quiet operation. O-ring housing seal eliminates gasket problems. Handles contaminated liquids. Discharge port orientation flexibility 8 positions. For marine version see Model 109MB. For pedestal style version see Model 70P.
View full details
Pump Body: Bronze
Ports: Inlet: 1 1/4" NPT Outlet: 1" NPT
Flow: 96 GPM Max
Pressure: 30 PSI Max, 70 feet of head
Impeller: Centrifugal
Shaft Seal: Mechanical seal carbon/ceramic Buna Standard, Viton or Teflon Optional
Shaft: 416 Stainless
Motor / Drive: This close coupled pump uses a standard NEMA C-Flange 56J Jet Pump Motor with weld-on base and threaded shaft end to accept the pump impeller. Many motor options available. We can supply optional motors and assemble for you.
APPLICATIONS:
BRONZE CLOSE COUPLED CENTRIFUGAL PUMP Different Impeller sizes (for both single and three phase) Available for Differing Flow and Pressure Curves. The special pump alloys used provide corrosion resistance to many liquids including water, water solutions, and a wide range of commercial chemicals. Rugged bronze construction. Extremely quiet operation. O-ring housing seal eliminates gasket problems. Handles contaminated liquids. Discharge port orientation flexibility 8 positions. For marine version see Model 109MB. For pedestal style version see Model 70P.
