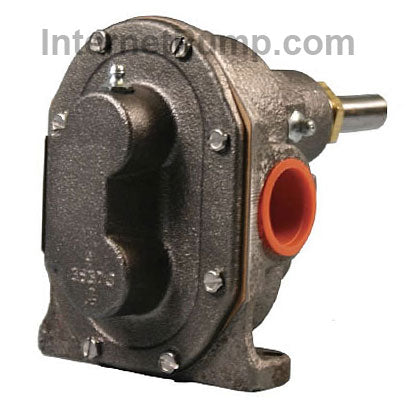

Oberdorfer Pump # CB9000L Gear Pump
Oberdorfer Pump # CB9000L Gear Pump
Oberdorfer CB9000L Gear Pump, Cast Iron, Pedestal Mount, 1" NPT Ports, Steel Gears, Steel Shaft, With Grease Fittings, Synthetic Braided Compression Packing with Teflon. Up To 24.8GPM, 100psi Max, 1 FNPT Ports, CB-9000-L, CB9000-L, Can replace Sherwood/Shurflo Industrial CK6 or Grainger 4KHK6
Regular price
$ 484.59 USD
Regular price
Sale price
$ 484.59 USD
Unit price
/
per
Shipping calculated at checkout.
We currently have 2 in stock, and can ship today before 4 PM.
Couldn't load pickup availability
FEATURES :
Pump Body: Cast Iron
Ports: 1" NPT
Flow: 24.8 GPM Max, Can Also Run In Reverse
Pressure: 100 PSI Max
Bearings: Cast Iron
Gears: Steel Gears
Shaft Seal: Synthetic Braided Teflon Packing
Shaft: Steel
Motor / Drive: Pumps should be mounted on a rigid base and properly aligned with the motor. Direct drive via flexible shaft coupling is the preferred method. We have many motor options available and can assemble for you.
APPLICATIONS:
CAST IRON PEDISTAL MOUNT ROTARY GEAR PUMPS These self-priming, positive displacement, external rotary gear pedestal pumps are ideal for oil based fluids in a wide range of light-duty commercial, industrial, marine, and agricultural applications.Shaft speeds up to 1750 RPM. Viscous liquids require reduced shaft speeds. For use with particulate free and non-abrasive high lubricating oil-based fluids compatible with iron and steel. Not to be used with water-based fluids. Line mounted pressure relief valves are recommended to protect downstream equipment.
