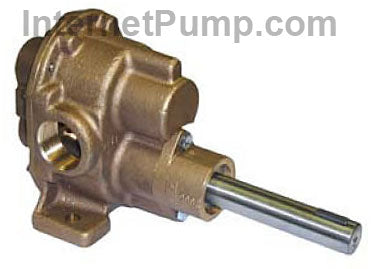

Oberdorfer Pump # N11510-S5 Gear Pump
Oberdorfer Pump # N11510-S5 Gear Pump
Oberdorfer N11510-S5 Gear Pump, Bronze, 1-1/4"NPT Ports, Viton Seal, Lower Drive Shaft.
Regular price
$ 2,276.79 USD
Regular price
Sale price
$ 2,276.79 USD
Unit price
/
per
Shipping calculated at checkout.
Out of Stock.
Couldn't load pickup availability
FEATURES :
Pump Body: Bronze
Ports: 1 1/4" NPT
Flow: 60 GPM Max
Pressure: 150 PSI Max
Bearings: Self Lubricating Carbon Bearings
Gears: Bronze Helical Gears
Shaft Seal: Acrylic Graphite Packing or Viton-Teflon Lip Seal
Shaft: Stainless Steel Shafts
Motor / Drive: Either direct drive with flexible coupling or pulley drive can be used. For pulley driven pumps a pillow block bearing must be used at the drive shaft end to absorb the belt forces. The drive shaft is sufficiently long enough to accommodate a pillow block in addition to the pulley. We have many motor options and can assemble for you.
APPLICATIONS:
BRONZE PEDESTAL ROTARY GEAR PUMPS Service life will be increased substantially if the liquid pumped is clean and has some degree of lubricity. Liquids compatible with bronze and stainless steel can be pumped providing proper seal has been specified. Close tolerances and the positive pumping action make the rotary gear pump capable of lifting water on the suction side as high as 20 feet.
