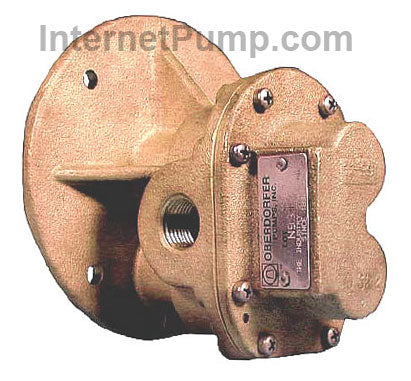

Oberdorfer Pump # N990RK Gear Pump Head With Bracket
Oberdorfer Pump # N990RK Gear Pump Head With Bracket
Oberdorfer N990RK Gear Pump Head Only, Bronze, 1"NPT Ports, Buna Lip Seal, With 182TC/184TC Frame Motor Bracket, Relief Valve.
Regular price
$ 1,866.60 USD
Regular price
Sale price
$ 1,866.60 USD
Unit price
/
per
Shipping calculated at checkout.
We currently have 2 in stock, and can ship today before 4 PM.
Couldn't load pickup availability
FEATURES :
Pump Body: Bronze
Ports: 1" NPT
Flow: 23.3 GPM Max
Pressure: 150 PSI Max
Bearings: Self-Lubricating Carbon Bearings
Gears: Helical gears for quiet operation
Shaft Seal: Buna Lip Seal Standard, Viton/Teflon Optional
Shaft: 303 Stainless Steel
Motor / Drive: Close coupled pumps are mounted directly to the electric motor by means of a suitable adapter bracket. The pump drive shaft is connected to the motor shaft by a flexible coupling. We have many motor options available and can assemble for you.
APPLICATIONS:
BRONZE CLOSE COUPLED ROTARY GEAR PUMPS These pumps are suitable for all liquids that are compatible with bronze. Most common liquids are water, oil, and mild chemicals in the pH-range of 4 to 11. Viscous liquids require reduced shaft speeds of 1150 RPM or lower. O-ring cover seal for maximum leak protection. For clutch driven version, see N990-38. A gear pump in new condition can lift 20 feet of water in the suction line.
