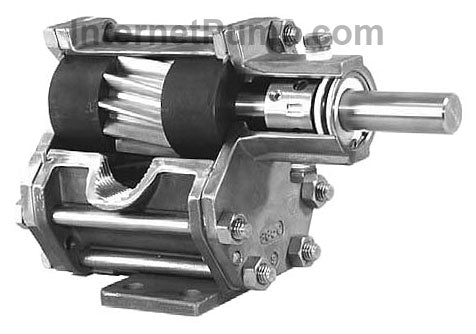

Oberdorfer Pump # S4171FPA Chemsteel Gear Pump Stainless Steel
Oberdorfer Pump # S4171FPA Chemsteel Gear Pump Stainless Steel
Oberdorfer S4171FPA Chemsteel Gear Pump, Stainless Steel, 10GPM, 3/4"FNPT Ports, with 316SS/Teflon Gears, Teflon Bearings, Wedge Style Seal 316SS/Carbon/Ceramic/Teflon/Kalrez.
Regular price
$ 3,892.96 USD
Regular price
Sale price
$ 3,892.96 USD
Unit price
/
per
Shipping calculated at checkout.
Out of Stock.
Couldn't load pickup availability
FEATURES :
Pump Body: 316 Stainless Steel or Alloy C Pedestal Pumps, single pump style or in Tandem. Also available in Non-Metallic Ryton versions. Chemsteel Non-Metallic Series.
Ports: 1/4" to 1 1/2" NPT (BSP threads available)
Flow: From .5 to 30 GPM Max at 1750RPM
Pressure: From 0 to 150psi
Temperature: From -50F to 450F
Bearings: Carbon Graphite, Teflon or Rulon. Slotted for lubrication.
Gears: Available Helical Gear combinations made from: Ryton, 316 SS, PEEK, Alloy C, W88 and Teflon
Shaft Seal: Styles available include: Bellows, Double Bellows, Wedge, Double Wedge, Double Lip, Packing and Packing with Lantern Ring Materials available include: Carbon, Silicon Carbide, Ceramic, Viton, EPDM, Teflon, Kalrez, Teflon with Graphite and Grafoil
Gear Shafts: 316 Stainless Steel or Alloy C
Motor / Drive: Close Coupled with available NEMA or IEC motor brackets, Direct Drive with flexible coupling or Pulley Drive can be used. We have many motor options and can assemble for you.
APPLICATIONS:
316 STAINLESS STEEL OR ALLOY C PEDESTAL MOUNT ROTARY GEAR PUMPS Also available in Non-Metallic Ryton versions. Chemsteel Non-Metallic Series. A wide variety of sizes and options available in a durable and proven pump design. See data sheets for specific features and options for each pump series. Relief valve required for safety. Service life will be increased substantially if the liquid pumped is clean and has some degree of lubricity. Any liquid compatible with the pump components can be pumped providing proper seal has been specified. Close tolerances and the positive pumping action make the rotary gear pump capable of lifting water on the suction side as high as 20 feet.
View full details
Pump Body: 316 Stainless Steel or Alloy C Pedestal Pumps, single pump style or in Tandem. Also available in Non-Metallic Ryton versions. Chemsteel Non-Metallic Series.
Ports: 1/4" to 1 1/2" NPT (BSP threads available)
Flow: From .5 to 30 GPM Max at 1750RPM
Pressure: From 0 to 150psi
Temperature: From -50F to 450F
Bearings: Carbon Graphite, Teflon or Rulon. Slotted for lubrication.
Gears: Available Helical Gear combinations made from: Ryton, 316 SS, PEEK, Alloy C, W88 and Teflon
Shaft Seal: Styles available include: Bellows, Double Bellows, Wedge, Double Wedge, Double Lip, Packing and Packing with Lantern Ring Materials available include: Carbon, Silicon Carbide, Ceramic, Viton, EPDM, Teflon, Kalrez, Teflon with Graphite and Grafoil
Gear Shafts: 316 Stainless Steel or Alloy C
Motor / Drive: Close Coupled with available NEMA or IEC motor brackets, Direct Drive with flexible coupling or Pulley Drive can be used. We have many motor options and can assemble for you.
APPLICATIONS:
316 STAINLESS STEEL OR ALLOY C PEDESTAL MOUNT ROTARY GEAR PUMPS Also available in Non-Metallic Ryton versions. Chemsteel Non-Metallic Series. A wide variety of sizes and options available in a durable and proven pump design. See data sheets for specific features and options for each pump series. Relief valve required for safety. Service life will be increased substantially if the liquid pumped is clean and has some degree of lubricity. Any liquid compatible with the pump components can be pumped providing proper seal has been specified. Close tolerances and the positive pumping action make the rotary gear pump capable of lifting water on the suction side as high as 20 feet.
