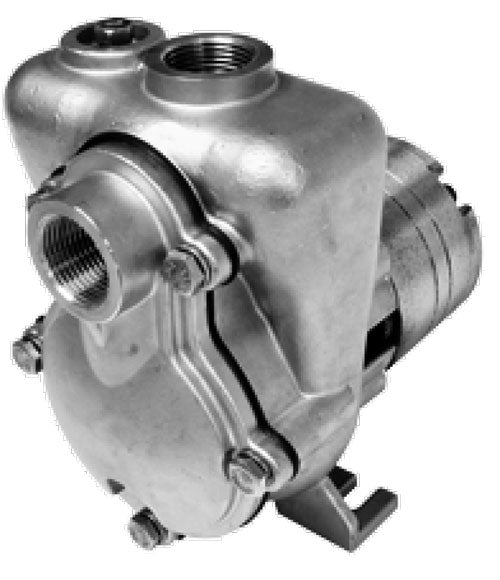

Primetime Pump # HYD-PT Stainless Steel Centrifugal Pump with Hydraulic Drive
Primetime Pump # HYD-PT Stainless Steel Centrifugal Pump with Hydraulic Drive
Proven DP HYD-PT Self-Priming Stainless Steel Centrifugal Pump, Hydraulically Driven, 3/4" NPT Ports, Motor Painted White, Up To 31 GPM, Up To 51 Feet of Head.
Couldn't load pickup availability
The Primetime Hydraulic pump is a high performance self-priming 316 stainless steel centrifugal pump close coupled to a CAST IRON hydraulic motor. The pump is ideal for marine, agricultural, and industrial applications where suction lift is required. The Primetime Hydraulic model features all 316 stainless steel components for superior corrosion resistance when pumping chemical compounds. A carbon/ceramic/viton bellows shaft seal is standard. Ports are 3/4 inch NPT with a 1/8 inch fill port on top. The check valve flapper design enhances the self-priming capability to 12 foot suction lift. The hydraulic motor is designed with SAE # 6 ports for the tank side while the pressure side has SAE # 4 ports. Maximum hydraulic Pressure for the motor is 1000 PSI. Maximum hydraulic Oil Flow is 3 GPM.
